The Secret Foundation of Clear Comms

Before you pack up the gear and send it back, take a look right beneath the mount. The answer to your transmission troubles is likely sitting right under the antenna, or missing entirely.

The missing piece of the puzzle is the ground plane. Far too often, people look at the surface beneath an antenna as a simple mounting bracket rather than an active component in your setup. In reality, it functions as the “other half” of your antenna system; without it, your high-tech gear is essentially trying to clap with one hand.

To understand how to fix your signal, you first need to understand what a ground plane actually does. In technical terms, a ground plane is an electrically conductive surface that serves as a crucial partner to your radio frequency (RF) antenna. It isn’t just a passive platform; it functions as a deliberate, active path that completes the electrical circuit required for your radio to transmit and receive waves efficiently.

To make sense of the physics, think of the standard quarter-wave whip antenna, the kind commonly used for CB, GMSR, or ham radios. These antennas are actually designed as only half of a complete system. They are engineered with the mathematical assumption that there will be a vast, flat, conductive surface directly underneath them.

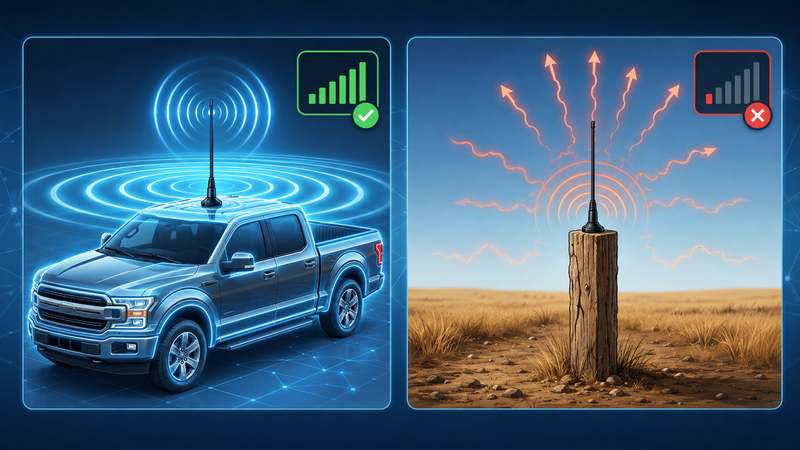

When you mount the antenna, that conductive surface acts like an RF mirror. It dynamically reflects the missing half of the signal, mathematically tricking the antenna into behaving like a full-sized, perfectly balanced dipole system. Because the ground plane acts as a mirror, the material you choose to mount your antenna on makes all the difference in the world.

Choosing a highly conductive mounting surface is only the first step; the magic truly happens when that surface interacts with your radio frequency (RF) energy. Far from being a passive floor mat, a proper ground plane actively manipulates your transmission. It directly controls where your signal travels, how efficiently your radio operates, and how far your voice can reach. It accomplishes this through three critical mechanics.

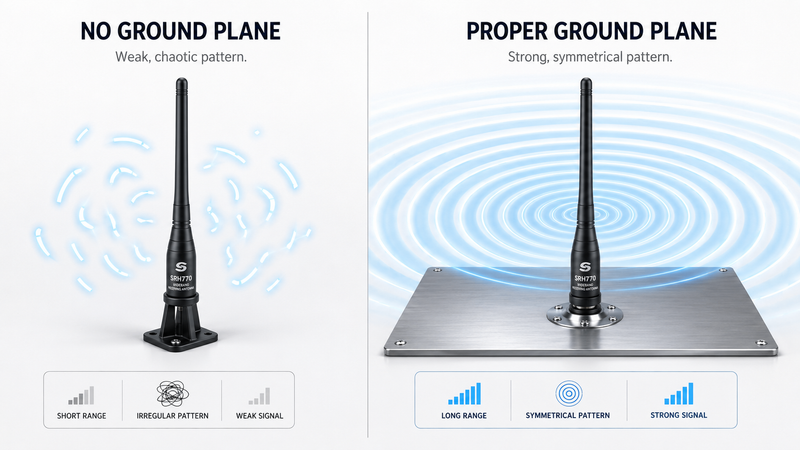

Without a ground plane, an antenna radiates energy wildly in all directions, including straight down into the earth or uselessly high into the sky. A solid, conductive ground plane acts as an RF barrier and mirror, catching those downward waves and bouncing them back upward. More importantly, it forces the overall signal down toward a lower launch angle. By squishing the signal shape, it redirects energy away from open space and focuses it flat toward the horizon, which is exactly where the other radios and repeaters you are trying to reach are located.

You will often hear the term counterpoise, which essentially acts as the electrical balance wheel to your antenna element. Your radio equipment sends power down a coaxial cable that consists of two main parts: a center core connecting to the visible antenna whip, and an outer shield. For power to flow smoothly without bottlenecking, that outer shield must connect to a large conductive mass, which is your ground plane. This connection completes the circuit for resonance, allowing for maximum power transfer from your radio transmitter into the air. Without this counterpoise, the energy has nowhere to go, resulting in high Standing Wave Ratio (SWR) readings that can easily overheat and destroy your radio’s internal circuitry.

It is not just about having a metal surface beneath your gear; the physical placement of the antenna directly dictates the shape of your communication footprint. When you place your antenna dead-center on a metal roof, the signal reflects evenly in a perfect 360-degree radius, creating a uniform, balanced, and highly predictable omnidirectional signal pattern. Conversely, if you mount your antenna on a rear bumper, a tire carrier, or the far corner of a roof rack, the signal pattern distorts heavily. Because there is more metal in front of the antenna than behind it, the signal will naturally pull and project much stronger across the length of the vehicle body while leaving you significantly weaker directly behind you.

Understanding the theory of radio waves is incredibly valuable, but the real test comes when you are out in the field and need to make a suboptimal setup work. You do not always have a perfect, factory-installed vehicle roof at your disposal. Whether you are operating away from your vehicle, setting up an emergency operations center, or just trying to get better reception at home, you can easily manifest a highly effective, temporary ground plane using everyday items. The key is simply finding a continuous, metallic surface that matches the needs of your environment.

If you are away from your vehicle and setting up a base camp on a plastic picnic table, your magnetic-mount antenna will struggle to perform. You can easily fix this by attaching your mag-mount antenna to a steel pizza pan, a metal cookie sheet, or even a heavy-duty cast-iron skillet placed on top of the table. This simple kitchen swap instantly creates a highly effective, temporary ground plane that mimics a car roof, allowing you to drop your SWR and clear up your comms while relaxing by the fire.

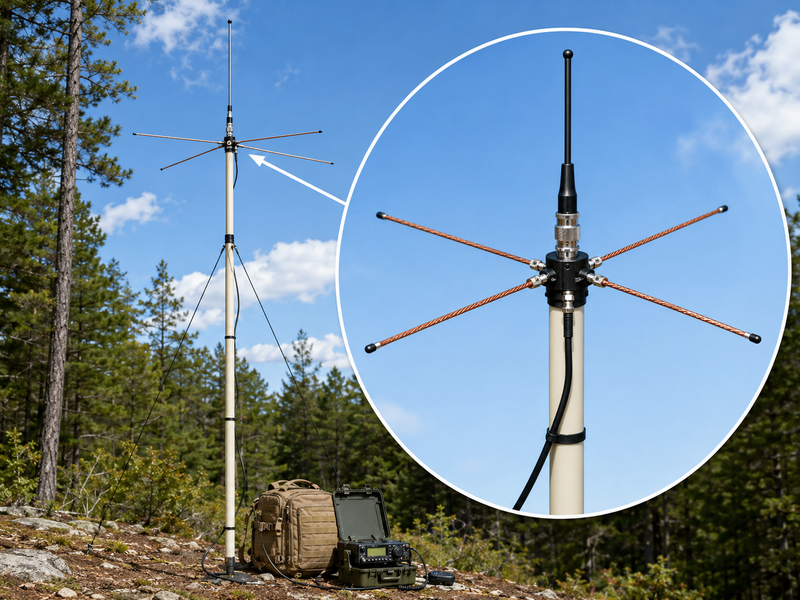

For preppers and emergency communicators building a rapid-deploy “go-kit” or a temporary grid-down command post, vertical real estate is everything. If you need to mount a VHF/UHF antenna on a non-conductive fiberglass or PVC mast to get over the tree line, you can create an instant counterpoise using simple metallic tape or loose wire. By running four equal lengths of copper wire horizontally outward from the base of the antenna mount like spider legs—a technique known as creating radial wires—you build a lightweight, highly packable ground plane that ensures your emergency broadcast cuts through the noise

If you are an everyday radio user looking to boost a desktop scanner, a GMRS base station, or a localized weather radio from inside a home office, you face unique structural barriers. Wood, drywall, and glass offer zero conductivity, which often traps your signal inside a single room. An easy and aesthetically clean workaround is to utilize the top of a metal filing cabinet, a steel cookie sheet tucked onto a bookshelf, or even a magnetic mount attached to the metal framing of a window sill. This small metallic footprint provides just enough of an RF mirror to dramatically improve indoor reception without requiring you to drill holes in your roof.

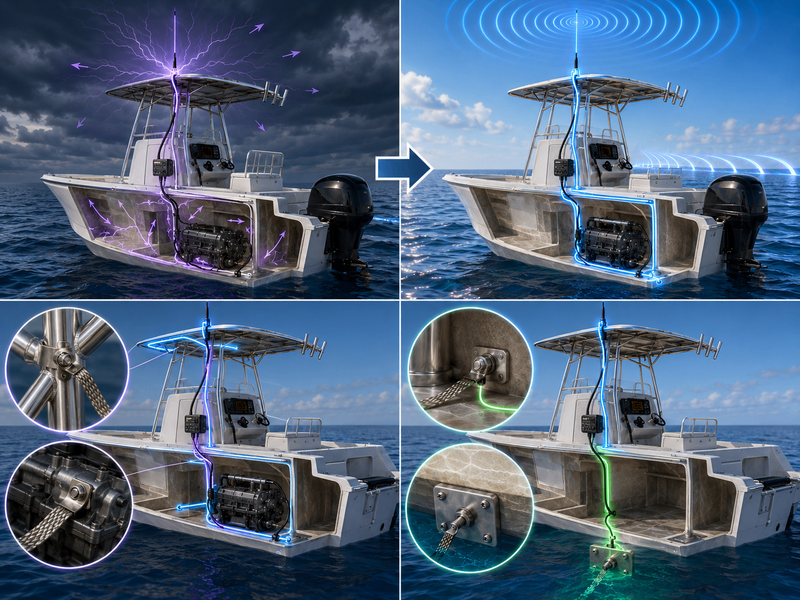

Boaters face one of the most challenging environments in the radio world because fiberglass and wooden hulls are completely non-conductive, yet water is highly reflective. For marine enthusiasts utilizing VHF radios, the solution is to install a dedicated through-hull ground plate or to ground the antenna system directly to the vessel’s inboard metal engine block or aluminum T-top tower. By bonding the antenna’s outer shield to these massive metallic structures, you turn the boat’s structural hardware into a heavy-duty counterpoise, allowing your signal to skim cleanly across the surface of the water instead of being lost to the waves.

Recognizing a missing foundation is crucial for protecting your gear. The most definitive warning sign is a high Standing Wave Ratio (SWR) reading that refuses to drop no matter how much you tune the antenna. Without a metallic mirror below, radio energy bottlenecks and reflects straight back into your transmitter. This often manifests as strange radio frequency interference, like dashboard lights flickering or speaker static when you transmit, because your coaxial cable is trying to act as the missing counterpoise.

You can also spot a failing ground plane through physical interactions. If your SWR changes wildly when you touch the radio chassis, or if your signal performance dramatically shifts between a bone-dry sunny day and a heavy rainstorm, your antenna is starved for a proper electrical partner. In rainy weather, non-conductive surfaces like wood or fiberglass absorb moisture and become temporarily conductive, causing your antenna’s tuning to drift constantly.

Ultimately, your antenna is only as good as the surface beneath it. Investing a few minutes to ensure a solid, centered, and highly conductive ground plane, whether it is a permanent car roof or an improvised steel cookie sheet, instantly transforms your radio performance. By giving your antenna the proper foundation it needs, you drop your SWR, maximize your range, and guarantee that your voice cuts through the static when it matters most.
