Product Spotlight

RAKwireless
Wismesh Repeater Mini

Meshtastic Solar + Battery + Node All-in-One

Extend Your Meshtastic Network with Rugged, Solar-Ready Reliability

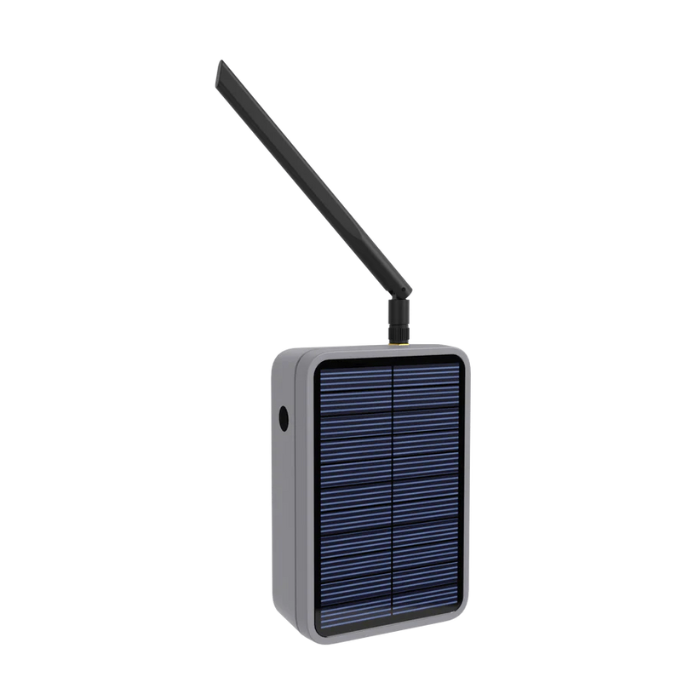

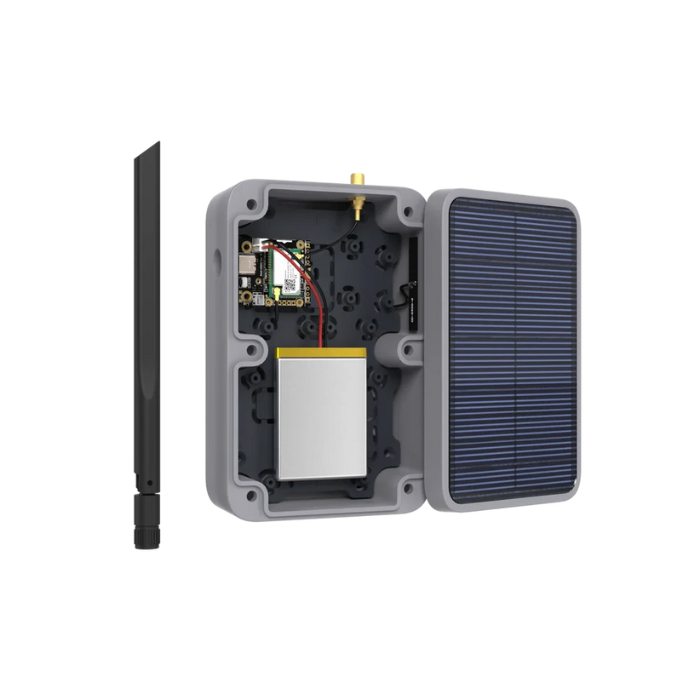

The WisMesh Repeater Mini is a pre-connected, solar-powered Meshtastic relay designed to expand LoRa mesh networks in remote or off-grid environments. Combining the RAK4631 LoRa module, a 3200 mAh battery, and an IP67-rated enclosure with integrated solar panel, it ensures continuous operation where traditional power sources are unavailable. Deploy it in minutes and keep your network connected—rain, dust, or shine.

It comes with an antenna, however if you wish to upgrade the antenna, note it has an RP-SMA port as opposed to SMA, so this will be relevant when searching for an antenna, converter, or coax cable.

Key Features

✅ Pre-Flashed & Ready to Use

  • RAK4631 Core Module: Nordic nRF52840 MCU (32-bit ARM® Cortex-M4F, 64 MHz) with Semtech SX1262 LoRa® transceiver.
  • Pre-Configured Firmware: Meshtastic firmware pre-installed for instant deployment.
  • Bluetooth Low Energy (BLE) 5.0: Pair and configure via the Meshtastic mobile app.

✅ Solar-Powered Durability

  • IP67-Rated Enclosure: ABS UL94V-0 flame-retardant casing with RP-SMA antenna connector.

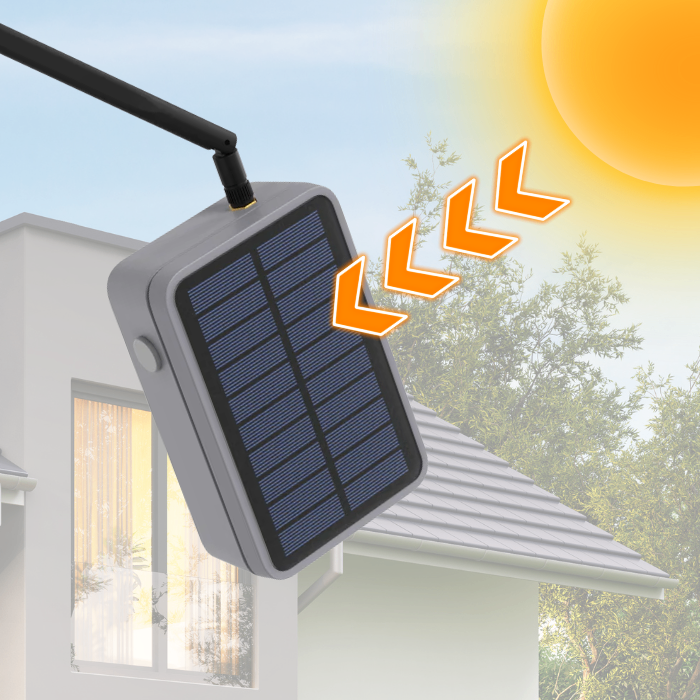

  • Integrated Solar Panel: Sustain off-grid operation with sunlight charging.
  • 3200 mAh Li-Ion Battery: Long-lasting power for continuous relay functionality.

✅ Versatile Mounting Options

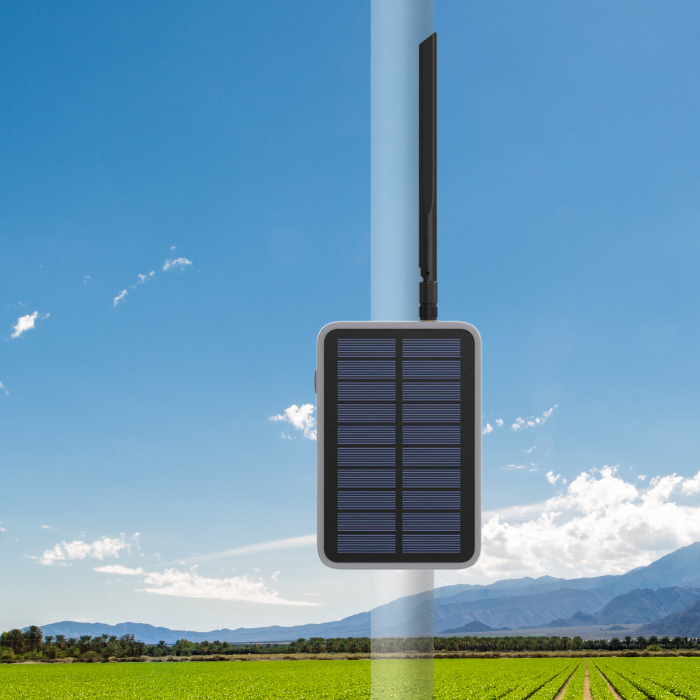

  • Swapable Brackets: Choose wall or pole mounts for flexible installation.

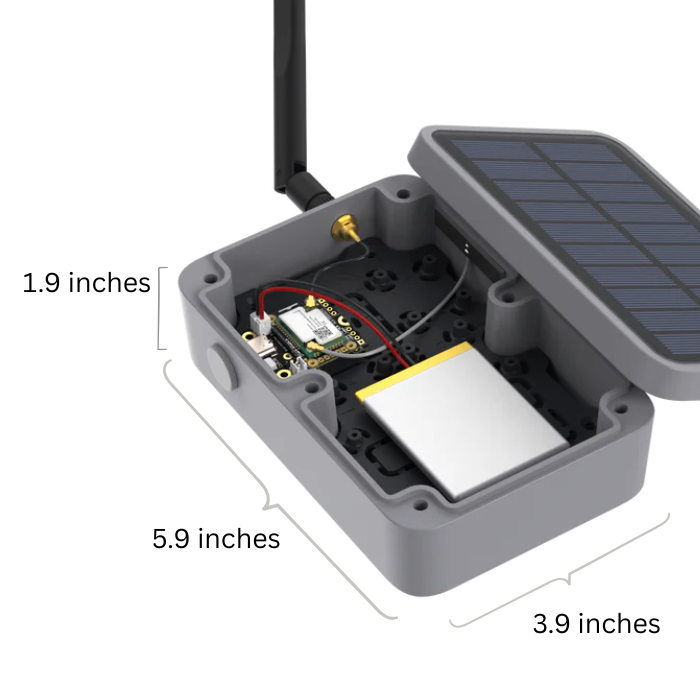

  • Compact Design: 150mm x 100mm x 50mm enclosure for portable or fixed setups.

✅ High-Performance Antenna

  • WisMesh Blade Antenna: Omnidirectional, vertically polarized LoRa antenna, with RP-SMA connection.
  • 9xx MHz Variant: 902–928 MHz, VSWR ≤1.5 (ideal for US).
  • 8xx MHz Variant: 863–870 MHz, VSWR ≤1.3 (ideal for EU).

Use Cases

🌿 Solar Repeater Deployments: Maintain network coverage in sun-rich, power-scarce regions. 🚨 Disaster Recovery: Relay critical messages during emergencies when infrastructure fails. 🌾 Agriculture & Environmental Monitoring: Track sensors across remote fields or forests. 📶 Off-Grid IoT: Connect IoT devices in areas without cellular or Wi-Fi.

Don't miss exciting content · Guides and spotlights in your inbox.

Email addresses only. See our Privacy Policy.

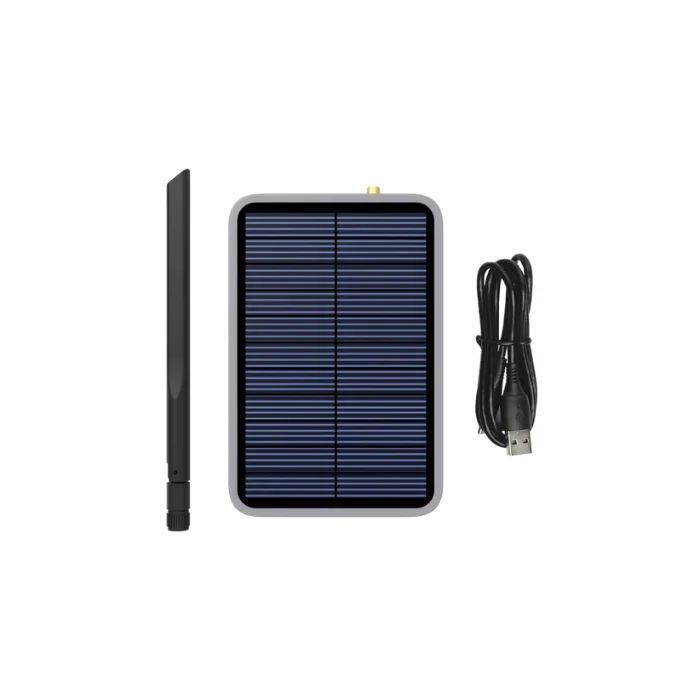

Package Includes

  • 1x WisMesh Repeater Mini (pre-configured)
  • 1x USB Cable (Type-C)
  • 1x WisMesh Blade Antenna (frequency-specific) with RP-SMA connection
  • Quick-start guide
Core ModuleRAK4631 (nRF52840 MCU + SX1262 LoRa®)
Battery3200 mAh Li-Ion rechargeable
EnclosureIP67-rated, ABS UL94V-0, 150mm x 100mm x 50mm
ConnectivityLoRa®, BLE 5.0
Solar SupportIntegrated panel for continuous off-grid charging
CertificationsFCC, CE, RoHS
Where to BuyRAKwireless Wismesh Repeater Mini
RAKwireless Wismesh Repeater Mini
Rokland
Rokland
